SolarHydro mk1
Technical Specifications:  ONLY £99 Pre-Order Deposit
- 8 independantly controlled USB (5v) peripheral devices using either manual or automatic timer based control e.g. NFT Circulation Pump, Flush Pump, Mixer Pump, Air Pump, Cooling Fan, Dehumidifier, LED Lights & Water Feature
- 8 independantly controlled internal (12v) nutrient precise feeding pumps using either manual or automatic timer based control e.g. Grow/Bloom A&B, Root Stimulator, Flower Increaser, Vitamins, Ripening Extender, Flushing Solution, PH Corrector. The A&B Grow/Bloom base nutrients are precisly delivered in exact equal proportions to ensure optimal balance of essesntial elements.
- Nutrient Solution and Air temperature real-time monitoring including historical graphing with upper and lower limit customisable threshold settings which notify the user with an email message when exceeded.
- Humidity monitoring and logging
- User Friendly HMI interface to monitor and controll all inputs and outputs broken down into 5 seperate pages including: Home, Graphs, Timers, Dosage and Settings reconfigurable screens
- Solar power meter indicator displaying the remaining battery level for the entire system with two "always on" USB ports for other optional devices e.g. mobile phone charging or bluetooth speakers
- Internal system cooling fan with audiable buzzer in the unlikely event of overheating
- Wi-Fi and Bluetooth connectivity
- 4 internal data USB ports for extra devices such as keyboard, mouse,security and monitoring webcams
- All monitoring data and controll parameters are stored in a non volatile SQL database ensuring you data is never lost and can be easily imported and exported to a variety of file formats including the most commonly used CSV file type for data archiving. Specific plant feeding schedules can be easily dowloaded from the PinderPonics website and uploaded wirelessly to the controller.

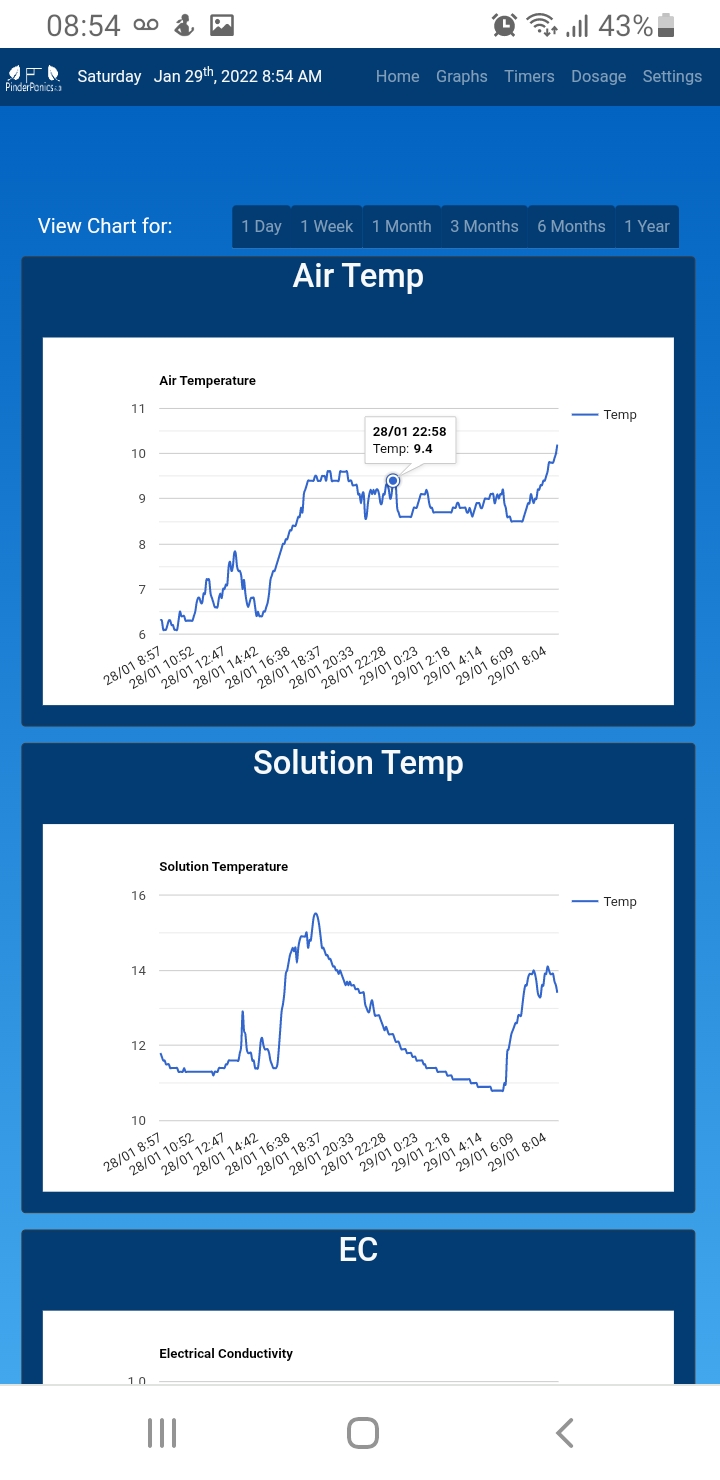

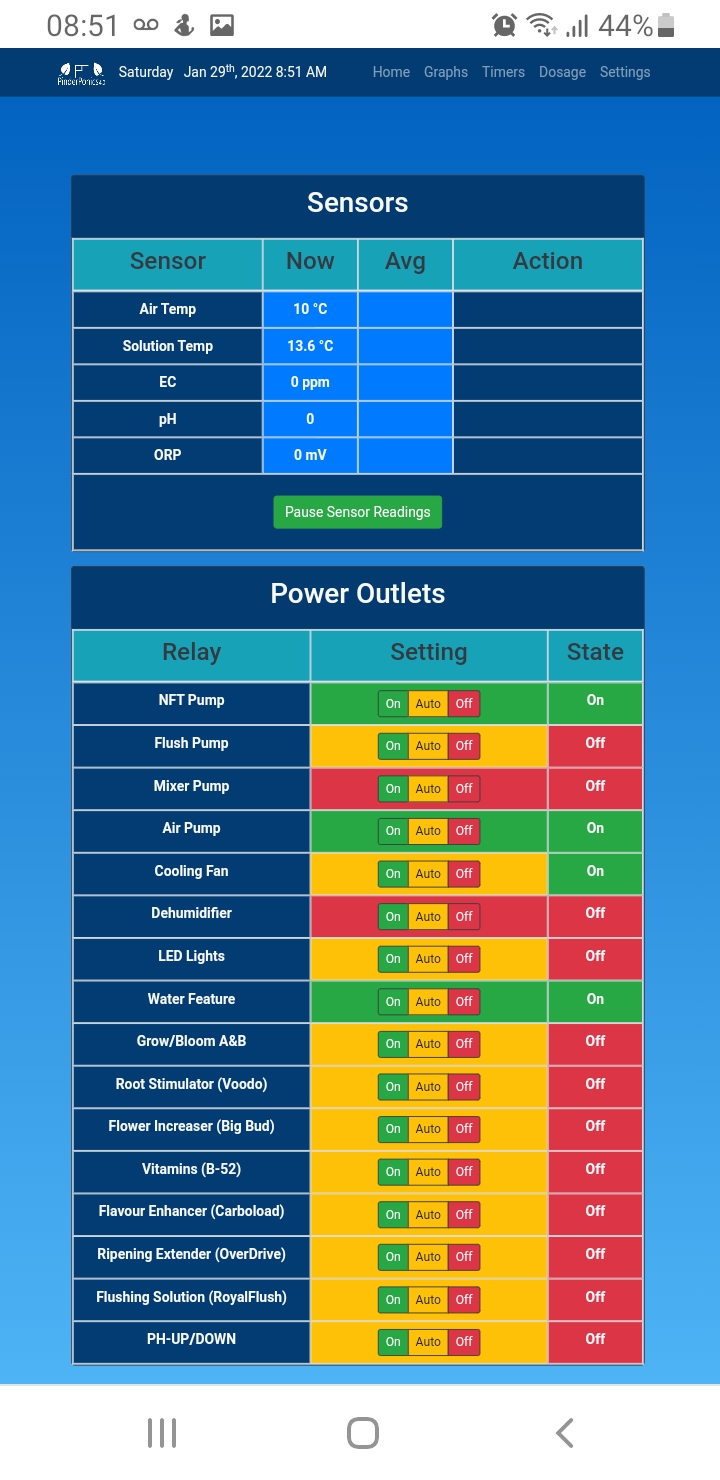

Wi-Fi Mobile App: Home Menu & Graph Screens
The Home Menu of the control software shows important sensor values and allows you you Manual or Automatically control each the 15 outputs independantly.
All sensor data is logged every 5 minutes and can be graphically viewed by opening the "Graph" tab (top right)
Each output is controlled automatically by setting start and end date/times for durations larger than 3 seconds e.g. Root Stimulator = 5 sec = 5ml nutrient dosage for 6 wednesdays in a row. Settings and configuration can be adjusted in the "Settings" tab while the "Dosage" tab allows you to view the reccomended dosages for each nutrient.

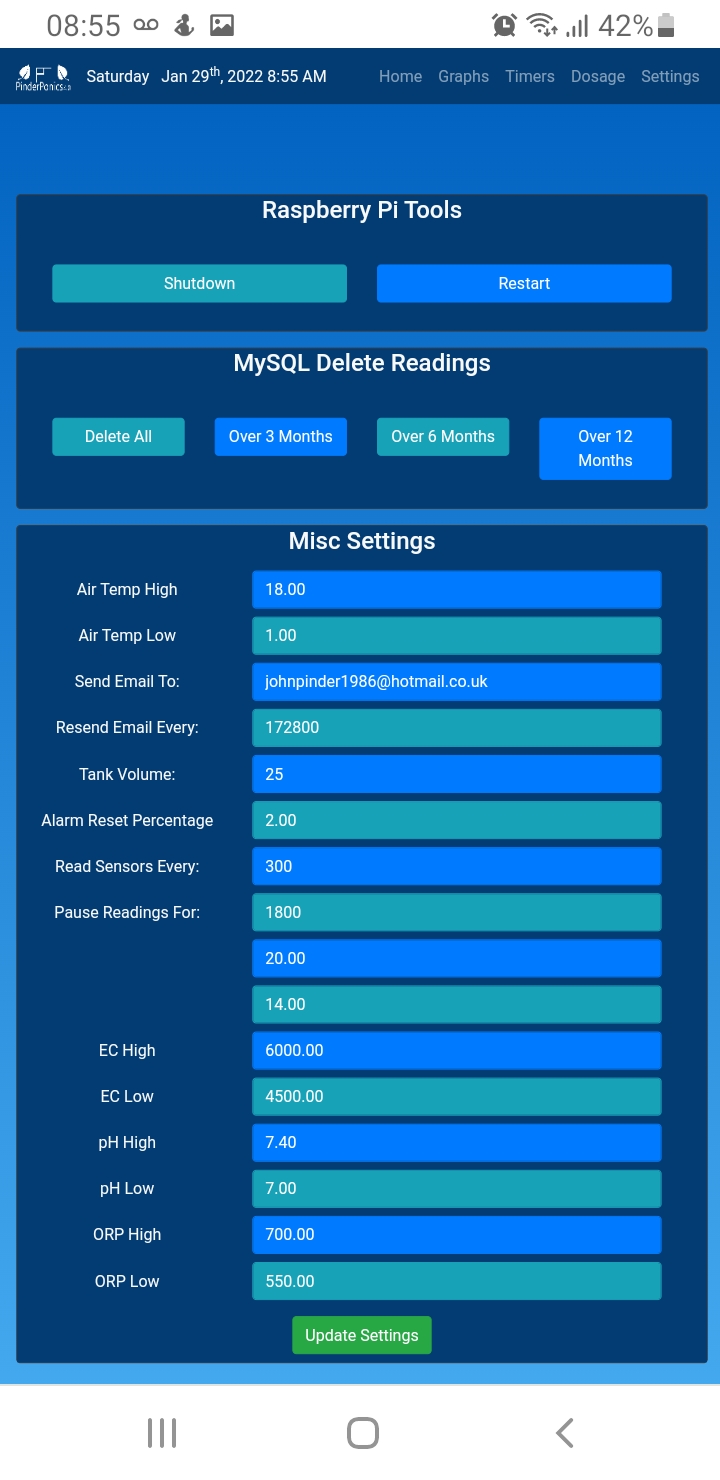

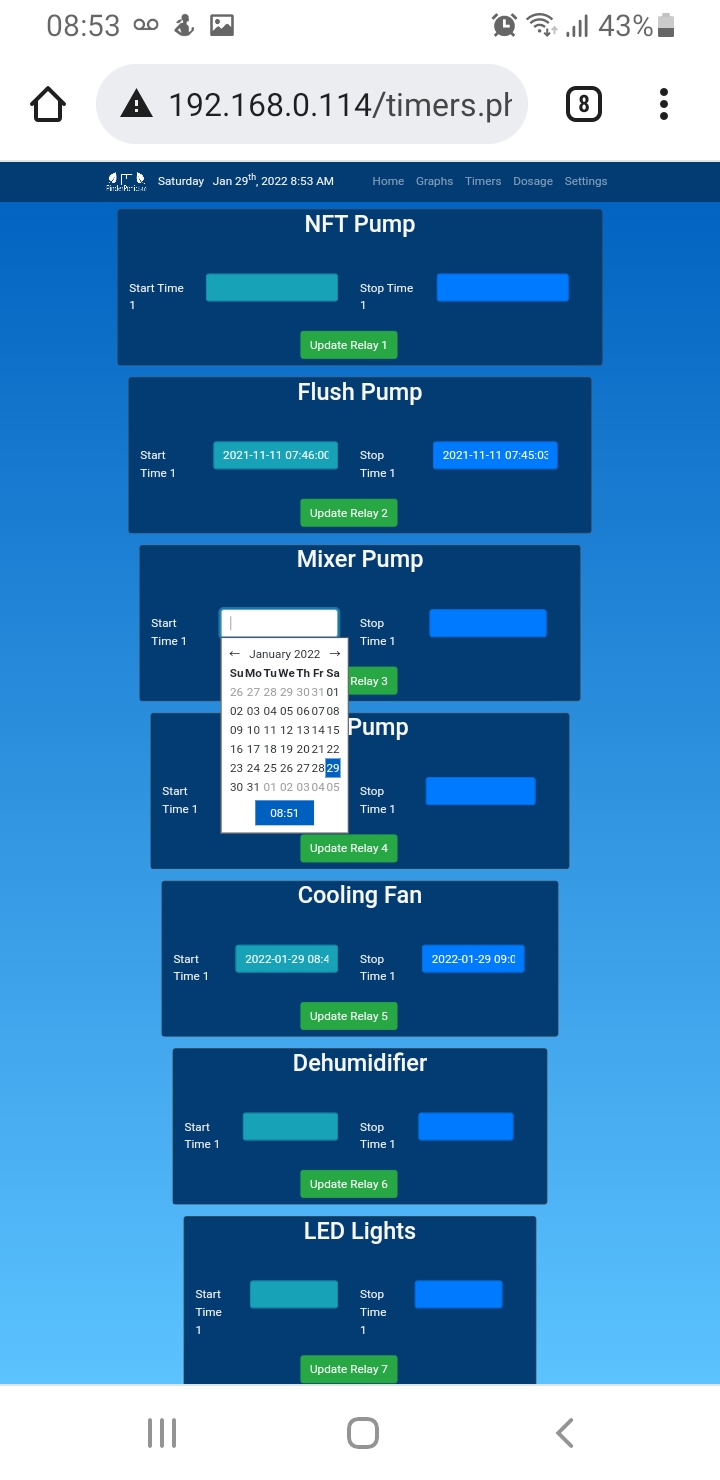

WiFi Mobile App: Timer & Setting Screens
For further information please refer to the User Manual and 5-Step quick start guide or contact PinderPonics HelpDesk
|
