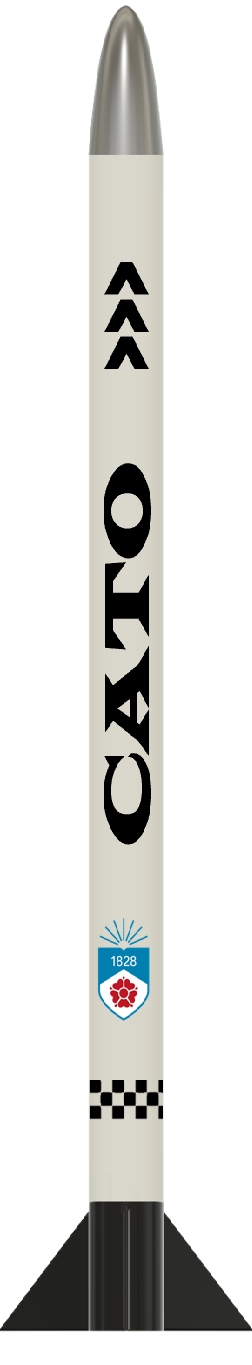

CAT
Mission:
Strong and low-cost "C" class rocket capable of carrying a flight logger.
Specification:
Length: 435mm
ID: 26mm
OD: 28mm
Mass W/O Motor: 98g
Motor: C6-5
Mass with Motor: 120g
CG: 21.4cm
CP: 26.7cm
Recovery: 12" Parachute
Payload: Flight Logger
BodyTube: Cardboard
FinCan&NoseCone: PLA+
Performance:
Apogee: 174m
Velocity Off Rod: 17m/s
Velocity at Deployment: 6.34m/s
Optimum Delay: 4.39s
Max Velocity: 51.1m/s Mach 0.15
Max Accelertion 185 m/s2
Time to Apogee: 6.64s
Flight Time: 38.5s
Ground Hit Velocity: 5.51m/s
Stability: 1.88cal
TestFlight: Jan 2025
About
The Cat rocket is robust little rocket designed to withstand many launches by using a strong recycled tinfoil body tube. Cat has a 3D printed Nose Cone and FinCan and kevlar shock cord which also acts as wadding to protect the small parachute recovery system. Using a flight logger, the flight data can be downloaded and analysed to further improve the accuracy of the simulations.
|
